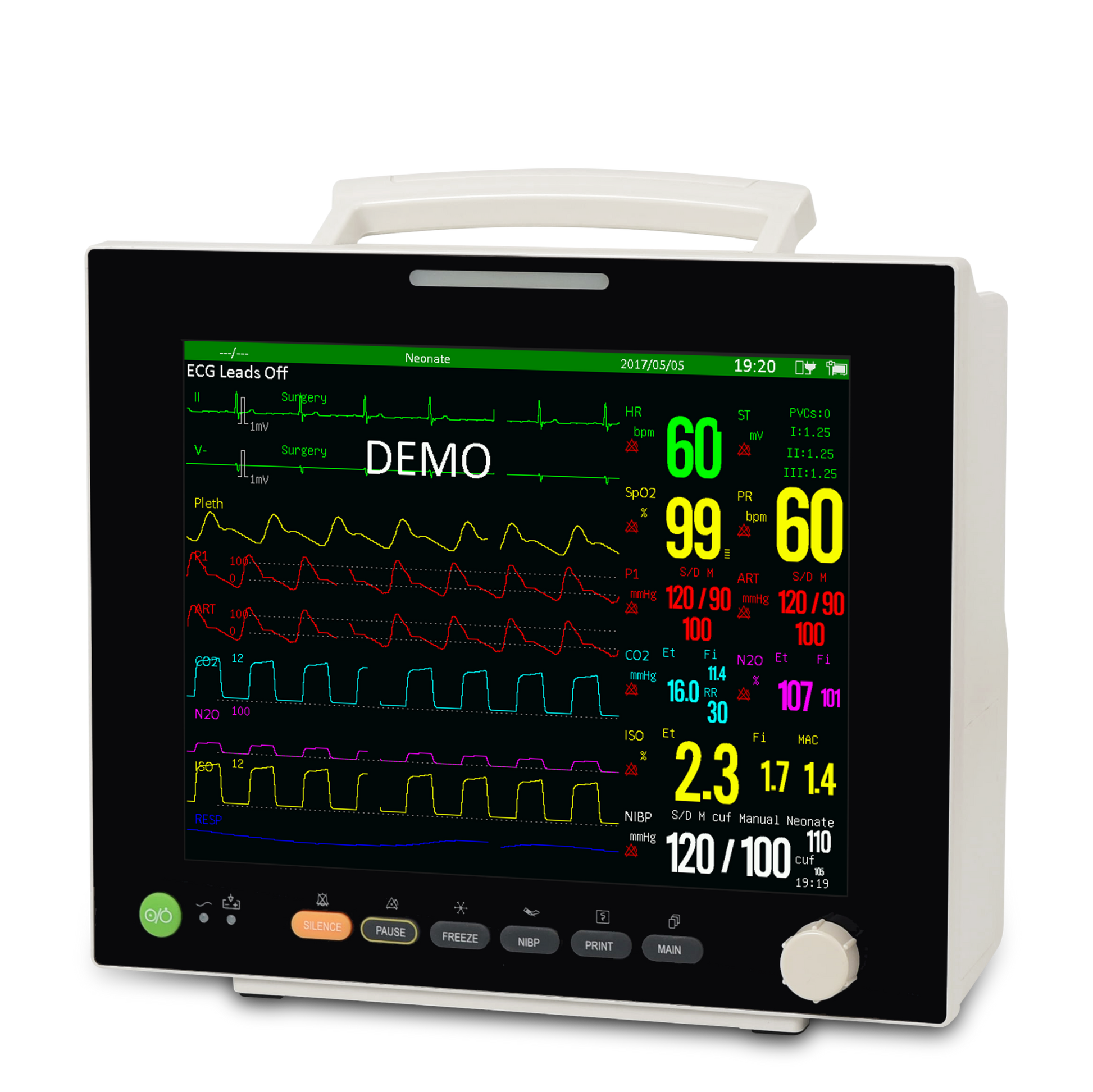

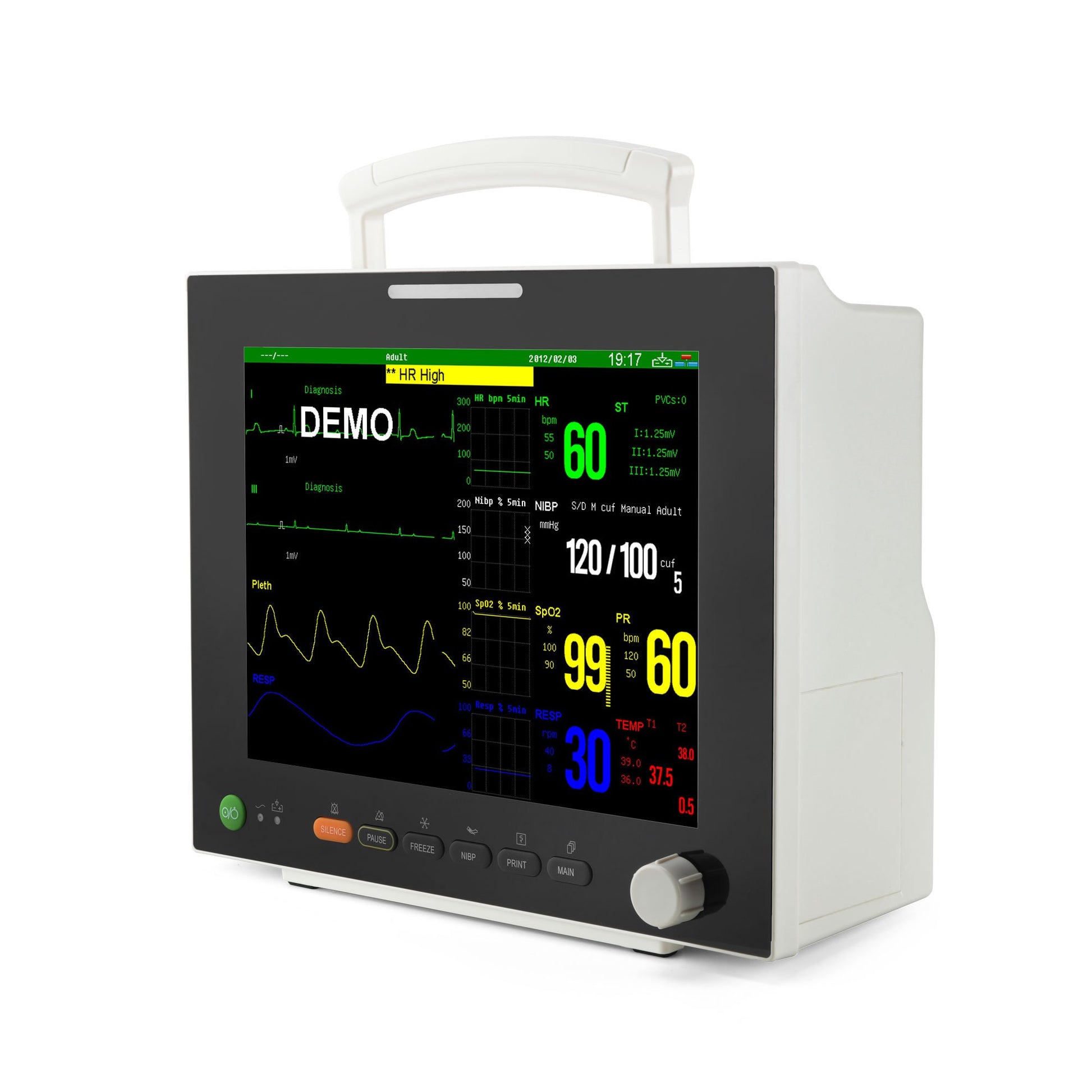

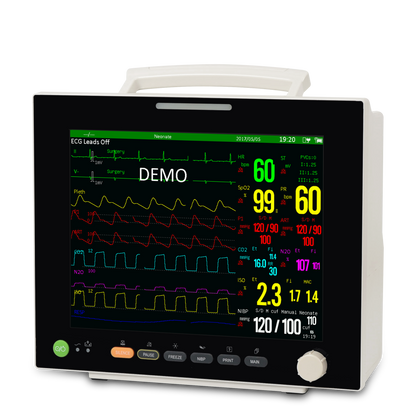

Anton-VM12JA Veterinary Monitor

The Anton-VM12JA is an ISO 13485-certified professional veterinary monitor designed for critical care accuracy.

It features a 12-inch high-resolution (800x600dpi) TFT touch-screen combined with a tactile navigation knob.

Tailored for versatile veterinary use, it includes dedicated software and alarm ranges specifically for cats, dogs, and horses.

Features & Configurations

The monitor offers adjustable brightness with Standard, Large font, Trend Coexis, and OxyCRG dynamic modes, as well as dynamic waveform capture and SpO2 Pitch Tone Variation.

For smart power and data management, it is equipped with a built-in rechargeable Li-ion battery, AC power checking, an energy-saving standby mode, and a time-delay switch-off to prevent data loss during power transitions.

Standard monitoring parameters include ECG, SpO2 (PR), NIBP, TEMP, and RESP.

Optional upgrades include EtCO2, 2-IBP, Suntech NIBP, Masimo/Nellcor SpO2, Multi-gas (AG), a built-in printer, and wall or trolley mounting solutions.

The system comes standard with a 3/5 lead ECG cable with vet limb clips, SpO2 tongue/ear clips, a rectum TEMP sensor, and 5 sizes (1#-5#) of original Suntech NIBP cuffs.

Technical Specifications

ECG and Heart Rate: The system supports a 5-lead standard and includes an animal-specific 3-lead cable. The heart rate range is 0 to 350 bpm (1 bpm resolution, ±1% accuracy) with gain selections of x1/2, x1, x2, and x4.

SpO2 and Pulse Rate: The module measures oxygen levels from 0% to 100% (+2% accuracy, undefined below 70%) and pulse rates from 0 to 300 bpm (±1 bpm accuracy).

NIBP: The system uses a digital auto-oscillometric method with a vet-specific board, offering manual, automatic, and continuous modes. The blood pressure measurement range is 10 to 300 mmHg for large animals and 10 to 200 mmHg for small animals.

Temperature (TEMP): The module uses an esophagus/rectum probe to measure from 0°C to 50°C with an accuracy of ±0.1°C.

Respiration (RESP): Measured via thoracic impedance with a range of 0 to 120 bpm and an accuracy of ±1 bpm or 5%.

ONE (1) YEAR LIMITED DEPOT WARRANTY

1. Warranty Provider and Term

The warranty is provided and conducted strictly by the manufacturer of this particular product, not by Medaza. The manufacturer of this particular product warrants to the original purchasing entity ("Buyer") that the hardware products sold shall be free from defects in materials and workmanship under normal clinical use for a period of one (1) year from the date of shipment.

2. Depot-Only Return Procedure

Warranty service is strictly a depot-return process conducted directly by the manufacturer of this particular product.

• First Step (Intake): To initiate a warranty claim, the Buyer must not contact the manufacturer directly. The Buyer must contact Medaza first by email at contacteurope2@medaza-platform.com.

• Delegation: Upon receipt of the email, Medaza will delegate and coordinate the direct connection between the manufacturer of this particular product and the Buyer, facilitating the return logistics and securing the required Return Merchandise Authorization (RMA) number.

• Shipment: No shipments will be accepted by the manufacturer's facility without an active, authorized RMA number. The product must be securely packaged in its original packaging (or equivalent protective packaging) and shipped directly to the designated service facility of the manufacturer of this particular product.

3. Allocation of Shipping Costs (Two-Way Shipping)

The Buyer assumes full financial responsibility for all shipping logistics, packaging, handling fees, customs/tariffs, and insurance transit costs associated with the warranty claim. This includes:

• Inbound Shipping: The cost to safely transport the product from the Buyer's facility to the designated service location of the manufacturer of this particular product.

• Outbound Shipping: The cost to return the repaired or replaced product from the facility of the manufacturer of this particular product back to the Buyer's designated location.

4. Universal Recall & Systemic Defect Exception

The shipping cost allocation in Section 3 shall be waived solely in the event that the returned product is officially determined by the manufacturer of this particular product, Medaza, or an authorized regulatory body (e.g., CE/MDR) to be subject to a Universal Recall, Safety Alert, or a verified batch-wide Systemic Manufacturing Defect. In such extraordinary circumstances, the manufacturer of this particular product will cover standard two-way ground shipping costs.

5. Warranty Exclusions

This warranty does not cover:

• Disposable clinical consumables (including but not limited to needles, sutures, and catheters) once packaging is opened.

• Damage caused by accident, abuse, liquid spills, improper sterilization, neglect, or unauthorized modifications/repairs.

• Normal wear and tear or cosmetic degradation.
